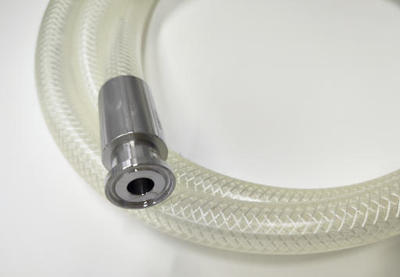

铂金硫化硅胶编织管

铂金硫化硅胶编织管

铂金硫化硅胶管，高强度聚酯织物和不锈钢AISI316L螺旋双重增强 多功能卫生设计，满足高压及高真空性的工况。

高纯度硅胶材质，挤出式工艺，降低了细菌滋生和残留物渗透风险，是输送卫生级介质的理想软管。内壁光滑，无气味，保证了介质的原有属性。耐大气剂、耐臭氧、耐温度差、耐多种化学品。软管经过认证的固化处理，确保不释放挥发性污染颗粒，并保护加工环境的卫生。

适用于制药、化妆品、生物技术和食品工业中传输介质，也满足需要高纯度、高弹性和高柔韧性其他应用中。当恒温超过+100℃时，每增加1℃，耐压降低1%。符合美国药典USP CLASS VI 和欧洲药典3.1.9；符合ISO 10993-5，无细胞毒性；对于食品输送，符合DA Regulations(Title 21 CFR 177.2600aqueous (e) and fatty (f) foods ))以及欧盟法规 EU Regulation 10/2011(classes A, B, C, D1)。

Platinum-curedsilicone hose with a versatile and robust design, reinforced by polyester pliesand stainless steel Aisi 316L spiral. Engineered to offer high pressure andvacuum capability. The ultrasmooth extruded tube made of high purity siliconecompound reduces the risk of bacteria buildup and permeation of residues andmakes Sil-Life W the ideal solution for hygienic contact with the medium whilebeing transferred. The smooth internal surface does not impart odor or tasteand preserves the organoleptic properties of the product. The hose undergoescertified post-curing treatment which guarantees no release of volatilepolluting particles and safeguards the hygiene of the processing environment.

• Ideal for critical product transfer in the pharmaceutical,cosmetic, biotech and food industries where high purity, resilience and goodflexibility are demanded. Not for implantation. In case of constant temperatureexceeding +100C°, the pressure resistance decreases by 1% every additional 1°C.

Compliantwith American Pharmacopoeia USP CLASS VI and European Pharmacopoeia 3.1.9.;noncytotoxic according to ISO 10993-5; for food delivery, it meets FDARegulations (Title 21 CFR 177.2600

aqueous(e) and fatty (f) foods )) as well as the EU Regulation 10/2011(classes A, B,C, D1).

详细参数

TC连接尺寸

其他规格尺寸，可以定制。
